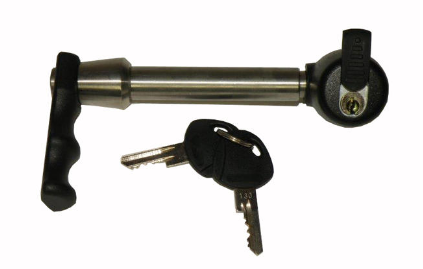

3020-048 BRINKS SUREGRIP™ L-HANDLE HITCH PIN LOCK- DISCONTINUED

1. This 3020-048 locking receiver hitch pin is universal for the 1-1/4” x 1-1/4” Class I & Class II receiver hitch and 2”x 2” Class III receiver hitch.
2. Class I and Class II receiver hitches have a 1-1/4" x 1-1/4" receiver tube opening that uses a ½” dia. receiver hitch pin, and are used for lightweight towing applications.  A Class I hitch has a lower tongue weight rating, usually 200 pounds and a lower towing rating, usually 2,000 pounds. A Class II hitch usually has a tongue weight rating of 350 pounds and a towing rating of 3,500 pounds.
3. A Class III, 2” x 2” receiver hitch has a rated up to 6000 lbs. gross trailer weight, with a maximum trailer tongue weight of 600 lbs.  A 2” x 2”  receiver hitch uses a 5/8” dia. receiver hitch pin. When using the 3020-048 Receiver hitch pin in a Class III, 2” x 2” receiver hitch the 5/8” Stainless Steel Sleeve MUST be on the ½” receiver pin.

• Ergonomic handle for easy removal
• Lock assembly faces 90 degrees from hitch pin for easy access
• Useable inside width - 3-1/4 inches
• Lock comes equipped with a pair of keys
• Made of stainless steel
