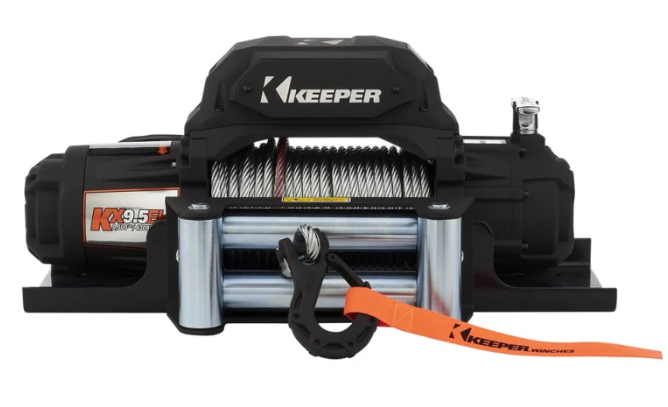

Keeper KX9500EH Extreme Series winch is designed for mid to full size trucks, and SUVs. Featuring a baked on all-weather finish, this winch is designed for durability in the elements. All electrical components are safely housed in the all-metal cover and feature a 3-way switch to control your integrated LED work light and wireless remote. This unit comes with a 12V DC electric motor that delivers 5.5 HP. The 9,500 lbs. rated line pull with the lift and turn free spool clutch and automatic full load holding brake allow you to tow confidently. This unit has a no-load line speed of 39 FPM, high-efficiency 3-stage planetary full metal gear train gearing, and 218:1 gear ratio.

100 ’ x 21/64” Galvanized wire rope
All-Weather finish clevis hook with latch
All-Weather textured roller fairlead and housing
Three-stage planetary gear train
Lift and turn free-spool clutch
KWA14122 replacement Handheld Lighted Switch on 15' Lead (Plug A, see below)
KX95002 replacement Handheld Lighted Switch on 15' Lead (Plug B, see below)
K(We don’t have a part number yet) replacement wireless Remote
Limited 90-Day Warranty

Additional accessories:

KWA011 Flat bed mounting plate
KWA14050 Clevis Hook
KX95001 Replacement switching solenoid, fits KX95 Series Winches
KWA14622 Heavy duty mounting plate
KWA14607 Trailer wiring kit

Replacement Parts:

KXR16000 Replacement Motor - KX Series (non-bridge)
#34 - KWR16022 Replacement Brake Assembly KW KX Series
#55 & #56 - KWR16007 Replacement Circuit Breaker - 3x50 Amp

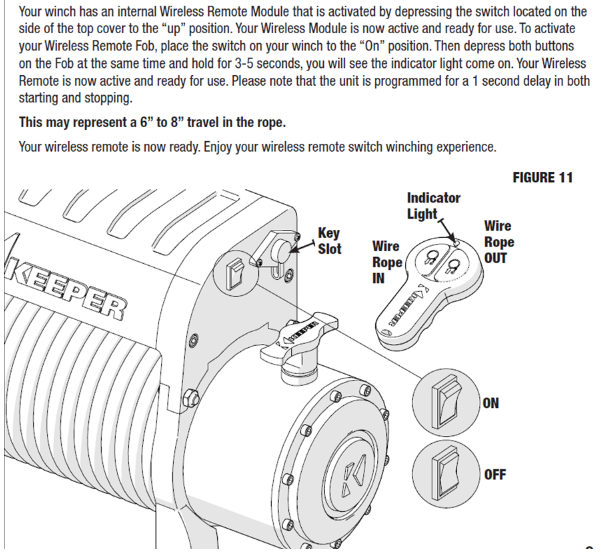

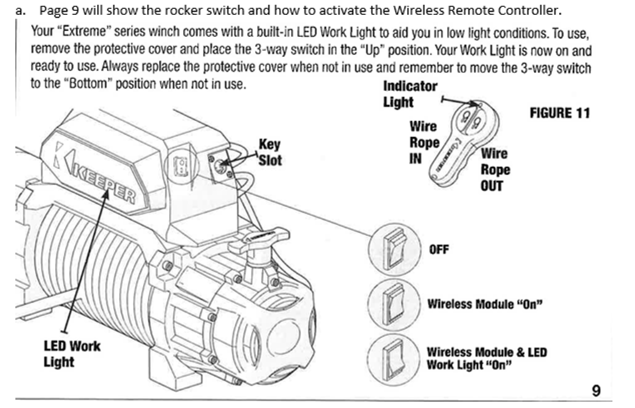

The wireless controllers for both KX9.5 Extreme winch must be turned on at the winch.

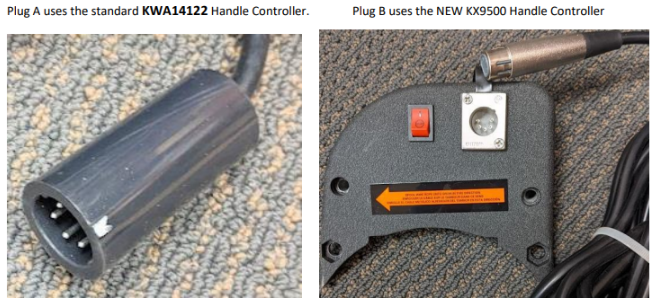

Plug B instructions:

Plug A instructions:

Circuit Breaker Capacity and Size

The factory circuit breakers for the KX9.5 winch is three (3), 50-amp circuit breakers in parallel. This is what our factory has designed and recommends for our KX9.5 winches.

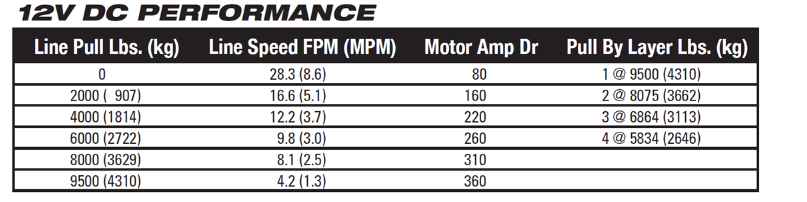

Please see the 12V DC Performance Chart below, found on page 4 of the KX9500S owner’s manual, with the factory Motor Amp Draw specifications at the pulling range by pounds.

3. Using a “Higher Amperage Rating” circuit breaker would make the winch run longer before the circuit breakers would trip (opening the circuit) causing the winch motor to get hotter, before circuit breaker opens and provides a cooling time and protection for the winch motor. This period is also referred to and called “Duty Cycle” in the winch industry.

a. We do not recommend using a “Higher Rated Circuit Breaker” than supplied from the factory, WE ONLY RECOMMEND USING OUR FACTORY CIRCUIT BREAKERS.

b. We also do not recommend using a “Manual Reset Circuit Breaker”, as our automatic self-resettable breakers provide the needed cooling time for the winch motor .

4. Our automatic self-resettable circuit breakers generally can be tripped or have the circuit opened several times without causing circuit breaker damage.

a. A new circuit breaker can be order through our Customer Care Team.

b. Before changing to new circuit breaker, please time and calculate the best you can the run-time of the winch.

c. Also, please feel the winch motor to feel the temperature of the motor and if the motor is hot to the touch, BE SURE TO KEEP HANDS AND BODY AWAY FROM A RUNNING WINCH, only touch and feel the winch motor while motor/winch is not running.

d. After changing to new circuit breaker, compare the winch run time and estimated load to see if the circuit breaker trips at the same approximate time, this could be an early warning sign the winch motor or winch in general needs to be checked or needs attention.

e. If the new circuit breaker does not trip, then it is a sign that the original circuit breaker just got old and weak.

KWA14122 KX95002

KX9500E, KX9500ES and KX9500EH

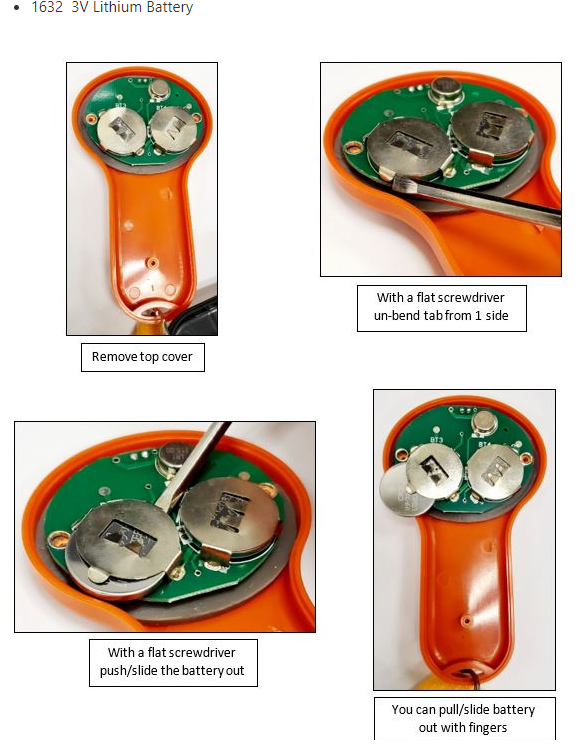

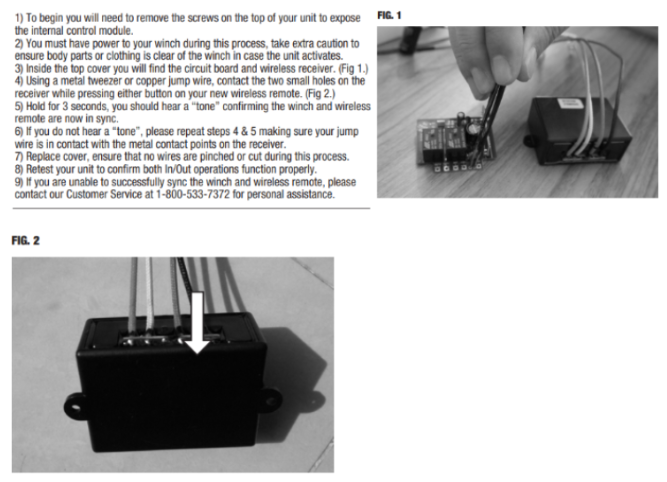

In the event you need to replace your Wireless Remote (due to loss or damage) you can replace it with the Keeper K(no item number yet) wireless remote switch.
