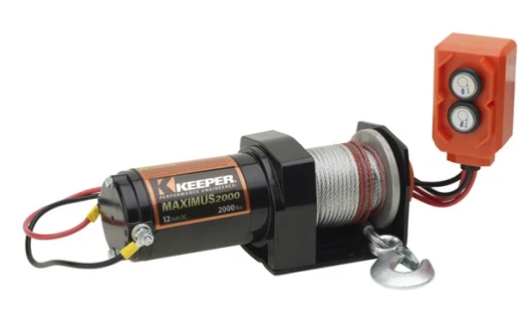

KM2000 Winch

The Keeper KM2000 Winch is designed with tough terrain and off-roading situations in mind. This unit provides power, versatility, and durability that is essential for ATV users, trailers, and even portable winch applications. The winch features a 1.0 HP 12V DC permanent magnet motor, dynamic full load brake, and a 2,000 lbs. single line pull rating to ensure reliable winching every time.

• 50’ of 5/32” Galvanized Wire Rope with hook and safety latch
• Wire gauge is 8
• Pull and turn-free spool clutch
• Single-stage, full-metal planetary gear train
• Comes with mounting plate and handheld remote switch
• The mounting plate is built in on the winch for KM2000 and KT2000
• KM has a different type hand control than the KT
• The mounting plate is built in on the winch for KM2000
• Limited 90-Day Warranty

Suggested Accessories

KTA14115 ATV Roller Fairlead

KTA14131 2” Receiver Mount Hitch

KTA14128 Wiring Kit 6 AWG Wire @25’ & 6’ w/Quick Connect

KTA15120 Pulley Block Assembly 8,000 lbs.

KWA14617 Bow Shackle ¾”

KTA502 Flat Mount Plate

Replacement Parts

#25 - KM16000 Hand Held Switch for KM2000

#22 - KTA14118 Wire Rope w/Hook 5/32" x 50' for KT2000, KM2000

#26 - KTA14129 Circuit Breaker KT2000

#19 - KWR16016 Replacement KM2000 T Handle Clutch Release Lever

KWR16017 Replacement KM2000 Hand Controller Shell

#8 sliding bearing - This part is not a stock item and unavailable

Winch Drum Screw:
