KT3000 Winch

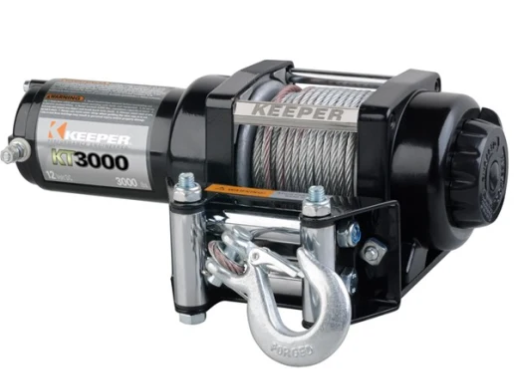

The Keeper KT3000 Electric Winch is designed with tough terrain and off-roading situations in mind. This unit provides power, versatility, and durability that is essential for all UTV/ATV users, trailers and even portable winch applications. The winch features a 1.7 HP 12V DC permanent magnet motor, mechanical and dynamic full load brake and a 3,000 lbs. single line pull rating. Equipped with a cam activated free-spool clutch that allows for easy and quick disengage of the drum and withdraw as much rope as needed. It also includes 3-stage, full-metal planetary gear train, case-hardened gears, mounting plate and a handlebar mounted mini rocker switch w/ mounting bracket for ease of removal and use as a handheld remote, a load doubling pulley block and a flatbed mounting plate making this a truly all-purpose winch.

• 3,000 lbs. Single layer line pull, 22.5 FPM line speed (no load)
• 50’ of 3/16” Galvanized wire rope with hook and safety latch and roller fairlead
• 1.7 HP 12v Permanent magnet motor
• Full-load holding mechanic and dynamic brake

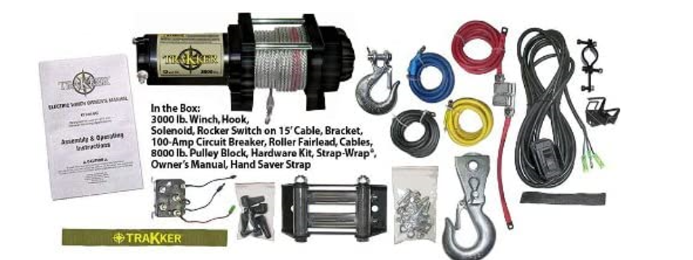

Accessories Included

#52 - KTA14104 Mini Rocker Switch

#53 - KTA14113 Switching Solenoid

#35 - KTA14115 Roller Fairlead, Fits mounting plate KTA502

#33 - KTA502R Flat Mount for Roller Fairlead

#40 - KTA14117 Clevis Hook

#39 - KTA14119 Wire Rope 3/16" x 50'

Suggested Accessories

KTA14125 Wireless Remote Switch for KT3000

KTA502 Replacement Flat Mount Plate for KT2000 & KT3000

KTA14131 Portable Winch Mount 2" Receiver Hitch

Replacement Parts

#2 - KTA16008 Replacement Clutch Knob KT3000-1

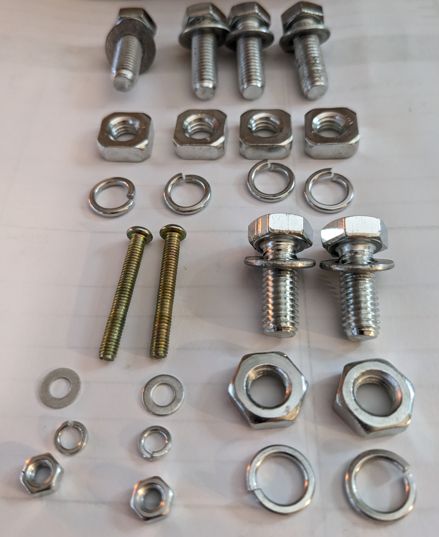

KTA14116 Replacement Part, Hardware Kit for 2500,3000,4000 Contains:

(4) #5, 41, 42, & 43

(2) #34, 36, 37 & 38

KTA16007 Replacement Winch Mount Kit KT3000/KT4000 Contains:

(4) #5, 41, 42, & 43

#16 & #17 - KTA16001 Replacement Drum Bearing- for KT3000

KTA16003 Replacement Brush ASSY, KT3000

#51 - KTA16009 Replacement Switch Holder KY3000-1

#50 - KTA14107 Replacement Rubber Boots for Terminal Ends, for KT3000 & KT4000

#48 - KTA14108 Replacement Power Wire Black, for KT3000 & KT4000

#47 - KWR16006 Replacement Circuit Breaker 2x50 Amp (included in KTA14109 Red Power Wire)

#46 & #47 KTA14109 Replacement Red Power Wire, includes short power wire and circuit breaker KT3000 & KT4000

#44 - KTA14111 Replacement Power Wire Yellow, for KT3000 & KT4000

#45 - KTA14112 Replacement Power Wire Blue, for KT3000 & KT4000

# 32 - KTA16006 Replacement KT3000 Motor

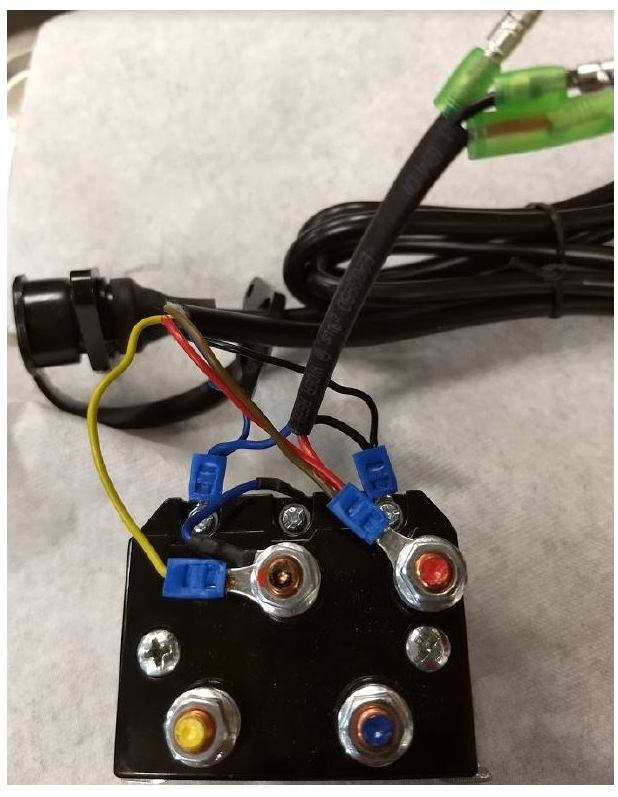

Solenoid notes.

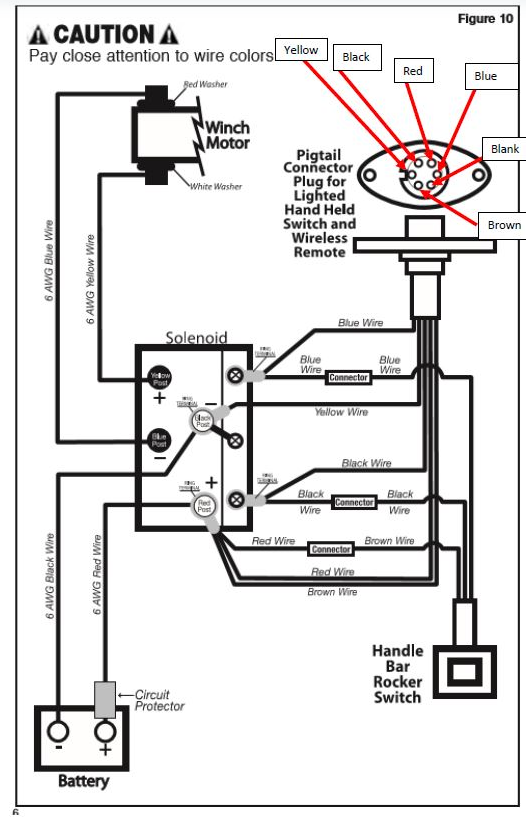

Our KT2500, KT3000, and KT4000 has a solenoid that requires remote mounting as shown in the owner’s manual picture below. The solenoid is not mounted to the winch.

Winch Drum Screw:
