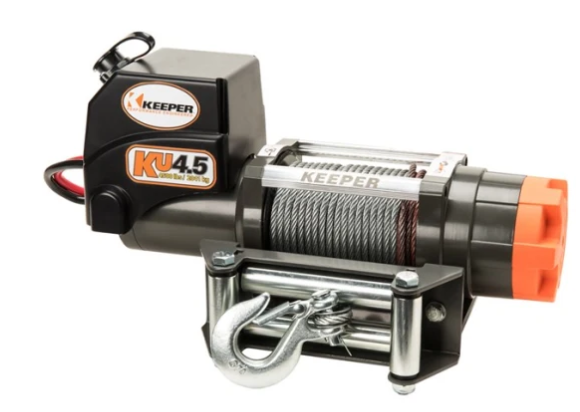

KU4.5 / KU45032 Winch

The Keeper KU4.5 is a high-performance utility winch that provides power, versatility, and durability essential for utility application users. The winch features a highly efficient 1.5 HP 12V DC motor, automatic full load holding break for safety and a maximum rating of 4,500 lbs. single line pull. It is equipped with a three-stage planetary gear train for fast line speed, a handheld remote control for power in/out control and a high intensity LED work light.

• 60’ L x 7/32” diameter galvanized wire rope
• Clevis hook and safety latch
• Integrated heavy-duty sealed solenoid
• Cam activated free-spool clutch
• Handheld Lighted Remote on 15' Lead
• Roller fairlead and mounting plate Included
• Limited 90-Day Warranty

Accessories Included

#36 - KTA14114 Roller Fairlead

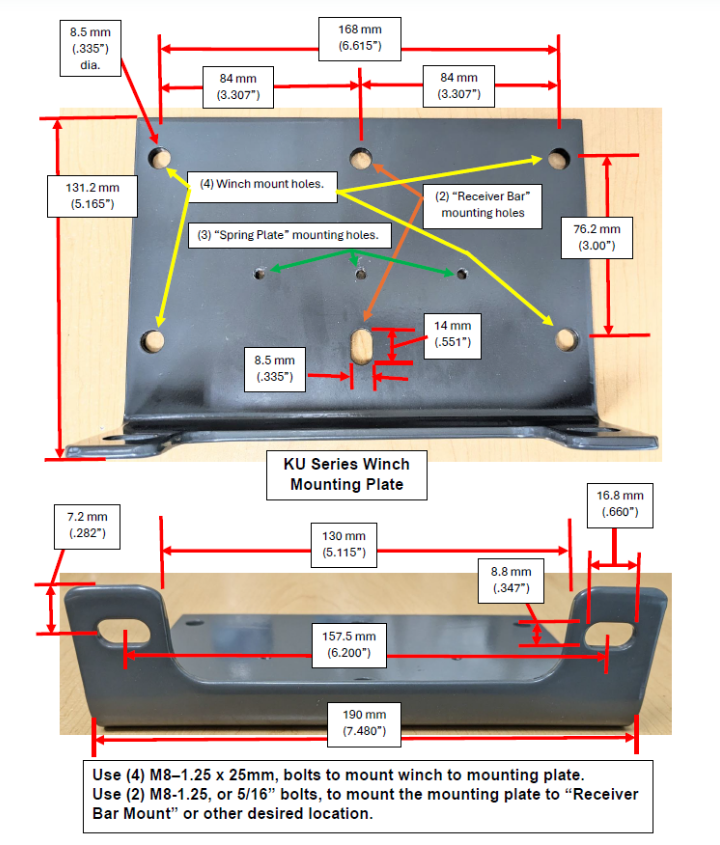

#38 - KTA503 Flat Mount Plate

#56 - KTA15120 Pulley Block Assembly 8,000 lbs.

#49 - KWA14122 Handheld Lighted Remote on 15' Lead

Suggested Accessories

KTA14126 Wireless Remote Switch

KTA14128 Wiring Kit 6 AWG 25' & 6' w/Quick Connect

KTA14131 2" Receiver Mount Hitch

KWA14512 Pulley Block Assembly 12,000 lbs.

KWA14617 Bow Shackle 3/4" 9,500 lbs. WLL

Replacement Parts

#23 - KUR16000 Replacement, KU Clutch Knob Caps

#18 - KWR16013 Replacement Clutch Base for KU Winches

#44 - KWAR14003 Control Box Solenoid Cover, fits KU's

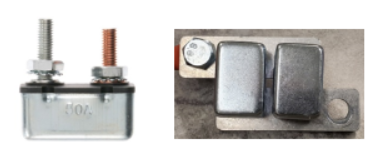

#50 & #51 - KWR16006 Replacement Circuit Breaker - 2 x 50 Amp

#42 - KU16006 Short Harness Socket Spade Terminals, for all KU

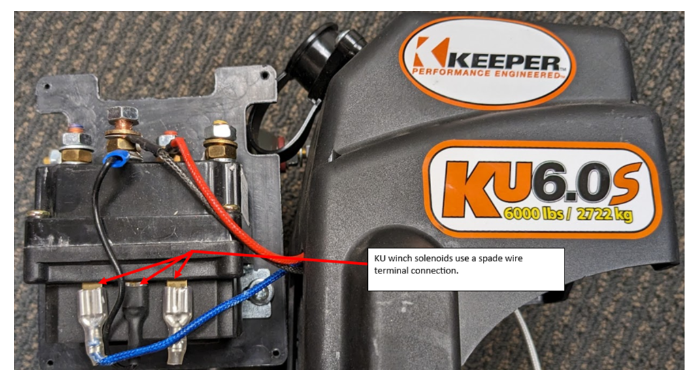

#45 - KU16005 Replacement Switching Solenoid Spade Terminals, (KTA14113 wrong item number)

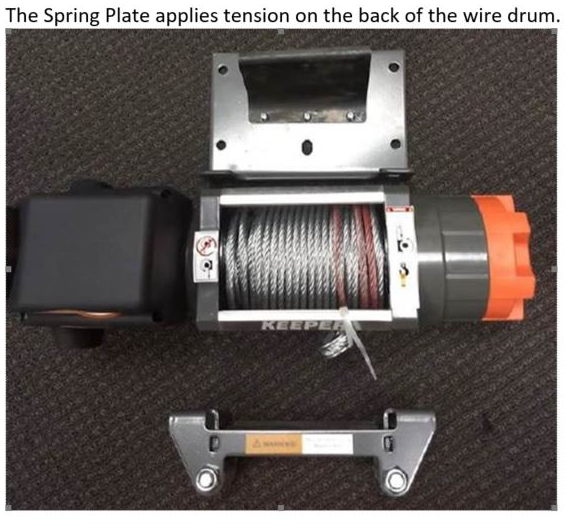

The curved plate is held onto the mounting plate with 3 screws and locking washers. The curve of it will be orientated towards the rear of the winch and keeps tension on the rope when the unit is put into Free-spool mode (clutch released), this prevents the rope from doing what we call “Birds Nest” or releasing all of its tension and making a big mess of the rope. This will apply a small amount of pressure against the winch / mounting plate when the customer attempts to mount it with the mounting bolts.

Sometimes after mounting the spring plate it is easier to mount the roller fairlead with the bolts inserted from the winch side out and the nuts on the roller fairlead side before mounting the winch to the mounting plate.

Winch Drum Screw:

#6 Drive Shaft is not a stock item and unavailable
