KX9500E / KX95122 Winch Extreme Series – Keeper Products

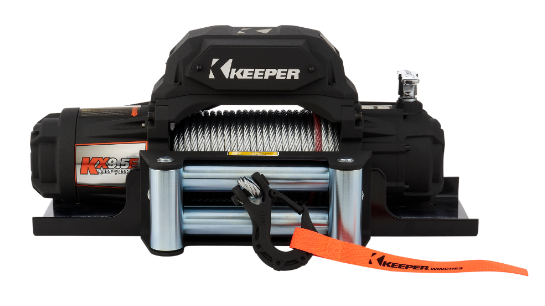

The KW9.5 is a 9,500 lbs. feature-rich winch that is ideal for trucks, Jeeps and SUVs. Built with a 5.5 HP series wound 12v DC motor, 4-way roller fairlead, and full load holding brake to ensure safe operation. The lift and turn free-spool clutch make connections quick and easy to get the user back on the road. As standard equipment on all KW Series winches, the wireless remote allows users the freedom to position themselves in the best spot during recovery. The 218:1 gear ratio is the perfect match for long-term reliable performance.

21/64” x 98’ ft. galvanized wire rope with clevis hook and safety latch
Three-stage planetary gearbox

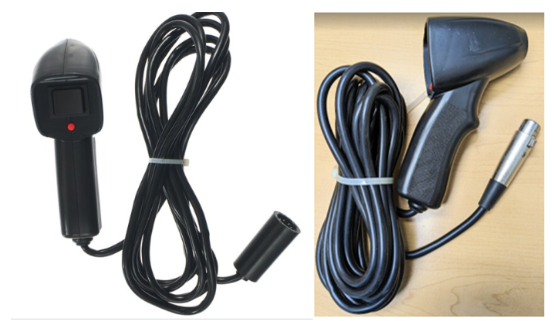

Includes wireless remote with two fobs and a 15 ft. wired remote with LED work light

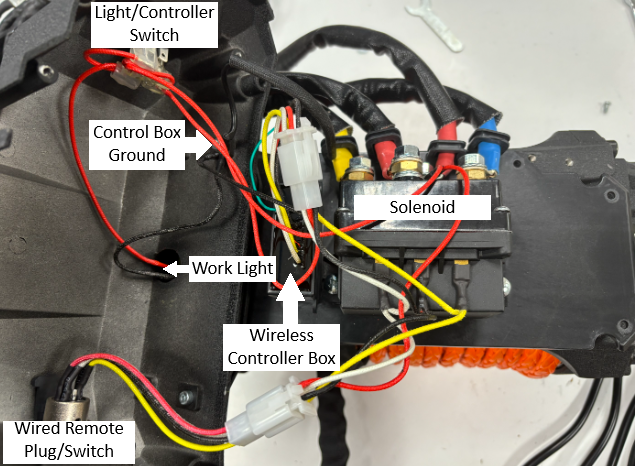

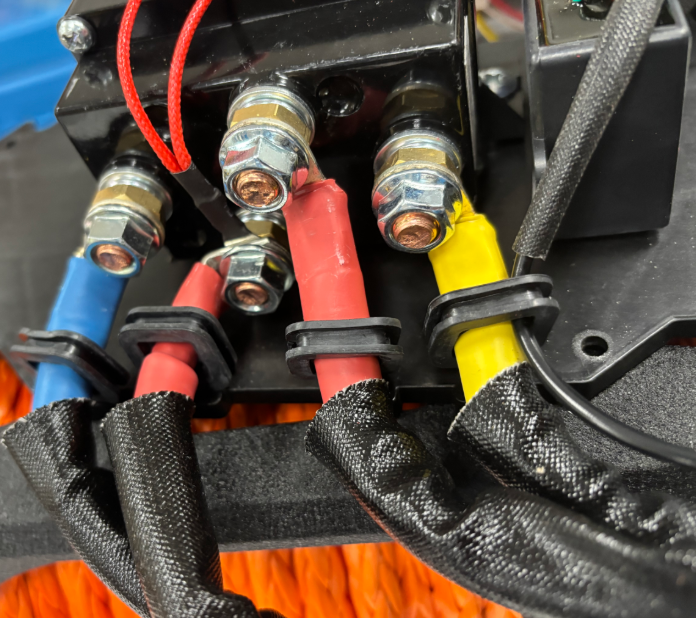

Heavy-duty sealed solenoid
4-way roller fairlead
K(We don’t have a part number yet) replacement wireless Remote
Limited 90-Day Warranty

Replacement Parts

#26 - KX95001 Replacement Switching Solenoid, fits KX95 Series Winches

#36 - KWR16022 Replacement Brake Assembly KW KX Series

#57 & #58 - KWR16007 Replacement Circuit Breaker - 3x50 Amp

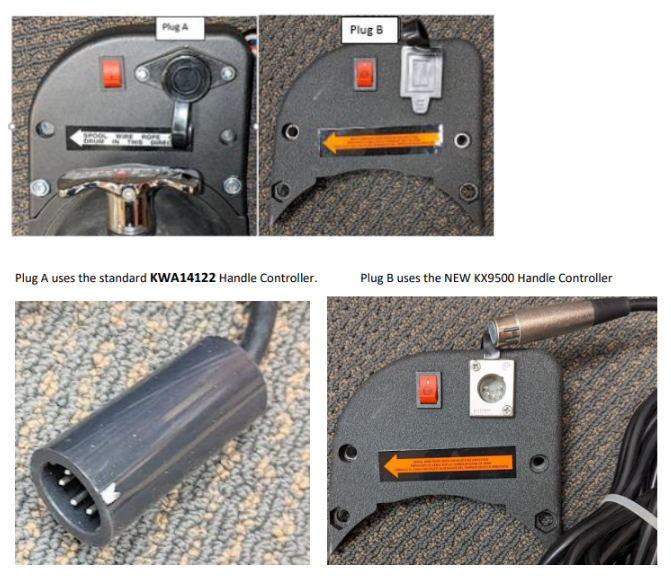

KWA14122 KX95002

KX9500E, KX9500ES and KX9500EH

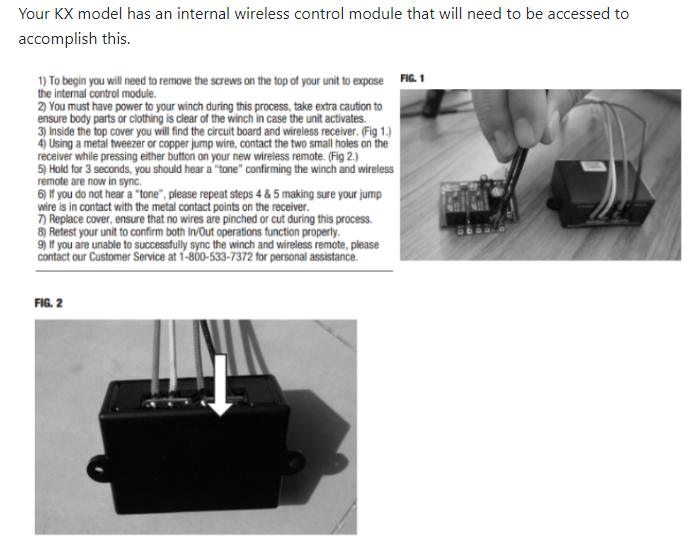

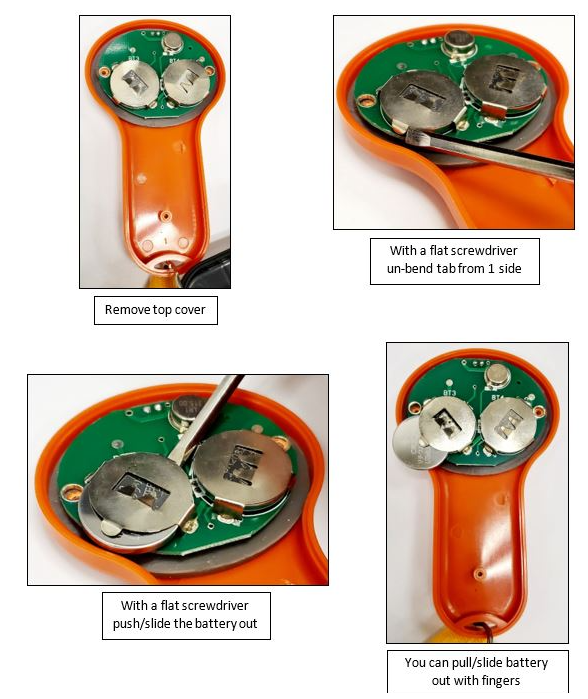

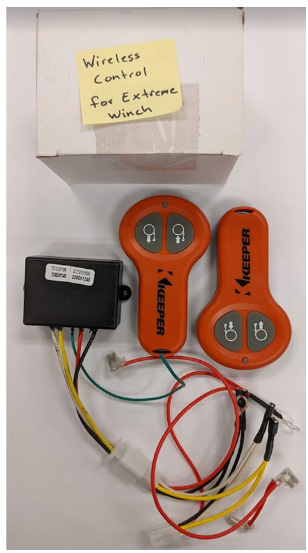

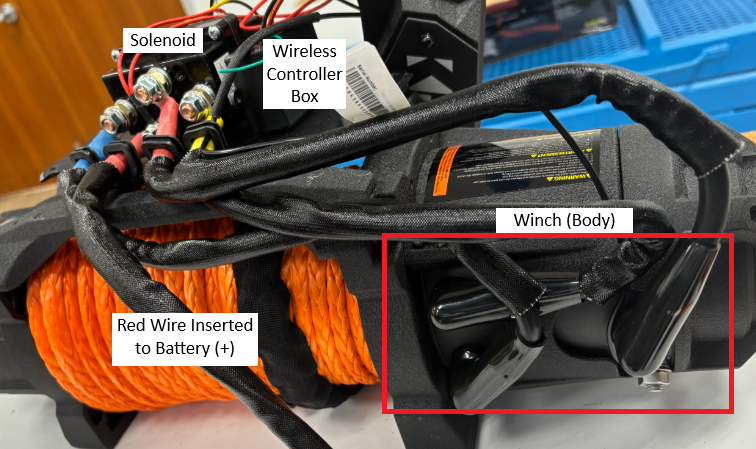

In the event you need to replace your Wireless Remote (due to loss or damage) you can replace it with the Keeper K(no item number yet) wireless remote switch.
