KW9.5 / KW95122 Winch

The KW9.5 is a feature rich winch that is ideal for all Jeep class and mid-sized 4x4 trucks. Built with a 5.5 HP series wound 12v DC motor, 4-Way Roller Fairlead and full load holding break to ensure safe operation. The lift and turn free-spool clutch makes connections quick and easy to get user back on the road. As standard equipment on all KW Series winches the wireless remote allows users the freedom to position themselves in the best spot during recovery. The 9,500 lbs. single line pull rating and 218:1 gear ratio is the perfect match for long term reliable performance.

• 100’ x 21/64" Galvanized wire rope
• Three stage planetary gear box
• Includes wireless remote w/ 2 fobs and a 15’ wired remote w/ LED work light
• Heavy duty sealed solenoid
• 4-Way roller fairlead
• Limited 90-Day Warranty

Accessories Included

#40 - KWA14122 Hand Held Remote on 15' Lead

#5 - KWA14510 Roller Fairlead

#52 & #53 KTA14126 Wireless Remote Switch

Suggested Accessories

KWA011 Flat Bead Mounting Plate

KWA101 Large Winch Cradle

KWA14622 Heavy Duty Flat Bed Winch Mounting Plate

KWA14550 Pulley Block Assembly 20,000 lbs.

KWA14560 Quick Connect for 2-4 AWG Wire

KWA14617 Bow Shackle 3/4"

KWA14607 Wiring Kit, Trailer, 2 AWG Wire @ 25' & 6' with Quick Connect

KWA201 Large Frame Winch Cover

Replacement Parts

#23 & #24 - KWR16010 Replacement Clutch Handle Kit for KW Series

#35 - KWR16005 Replacement Motor- KV, KW7.5, 8.5, 9.5, 10.5, 13.5 Series

#41 - KWA14520 Replacement Wire Rope, 21/64" x 100' KW9.5

#48 - KWR17038 Replacement Control Box Solenoid Top Cover, fits KV & KW

#49 - KWA14605 Replacement Switching Solenoid, fits KV & KW

#50 - KWR17040 Replacement Control Box Solenoid Bottom Base, fits KV & KW

KWR16020 Replacement Winch Mounting Kit KV, KW, KX

#44 & #45 - KWR16007 Replacement Circuit Breaker 3 x 50 Amp

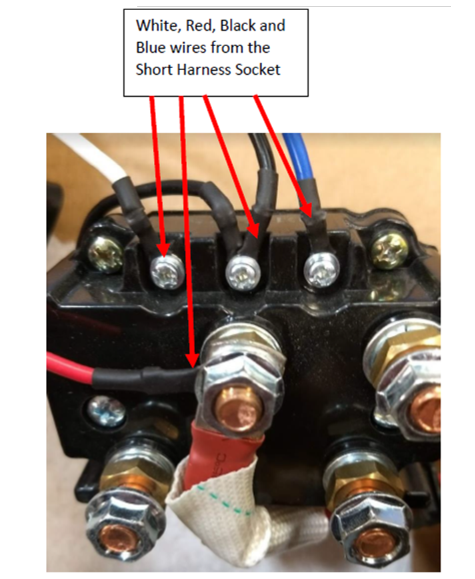

#46 & #47 - KWR17036 Short Harness Socket w/Cover, fits KU, KV, & KW

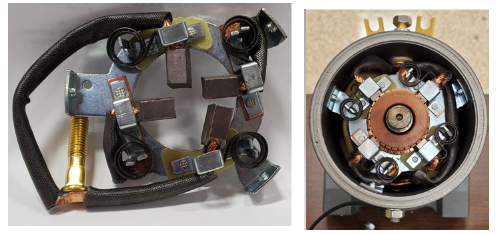

KWR16001 Replacement Winch Motor Brush Set for KW

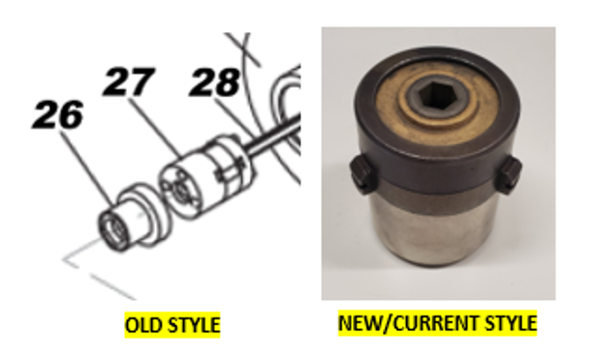

#33 - KWR16022 REPLACEMENT BRAKE ASSEMBLY KW KX SERIES

If requested for replacement "Brake Assembly" ask for a photo to make sure we have the correct one.

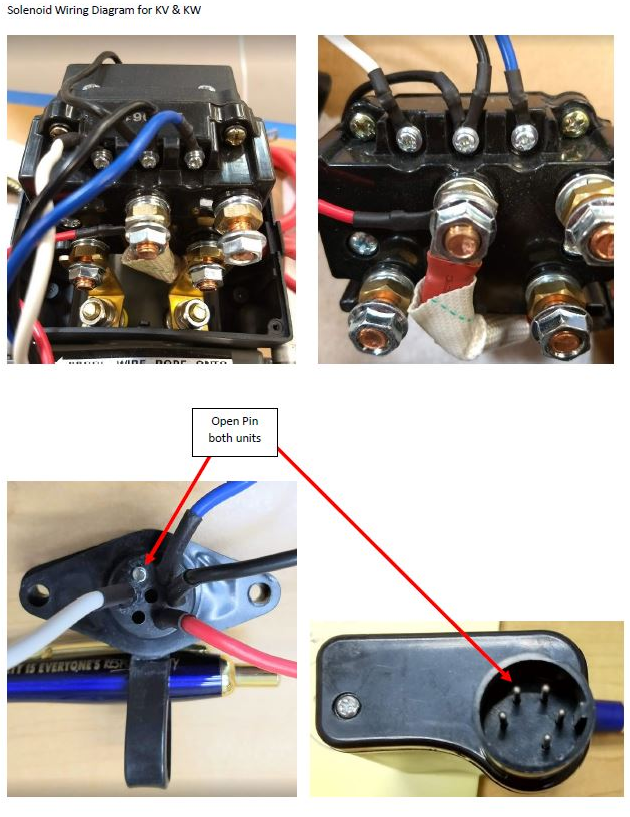

• Red small wire to large center post with large Red Cable is the power wire to the handheld controller or wireless receiver plug, and the large Red Cable is coming from the battery.
• Two black wires to the center small post would be ground
• The white (left hand small post) and the blue (right hand small post) are energized with positive to either retract or extend the winch.

Questions and Diagnose Tools:

Q: Why is winch randomly stopping while pulling load onto trailer?

A: It sounds like the circuit breakers are getting hot and opening the circuit, this could be because of age and usage.  Remove the circuit breaker and try the winch to see it the issue still continues. Removing the circuit breakers for troubleshooting is acceptable, but must be replaced to protect the winch motor under normal use.

Does the winch/solenoid ONLY click when trying to power out?  (Could be if powering IN if the symptom was the revere direction)?

1. If the solenoid ONLY clicks in one direction and works perfect in the other direction, issue could be the solenoid need replacement.
2. If the solenoid clicks in both directions, double check ALL wire and cable connections.
3. Double check the Battery is fully charged and has 12 volts and the amperage in the battery to power the winch.

Second diagnosing process to confirm if the solenoid needs replacement

1. 1. Change the White and Blue wire on the solenoid, (BE VERY CAREFULL) this will reverse the winch’s direction.  OUT will now be coming IN and IN will now be going OUT.  But this will confirm if the solenoid has a one directional pole/contact failure.

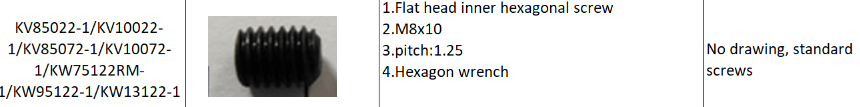

Winch Drum Screw:
